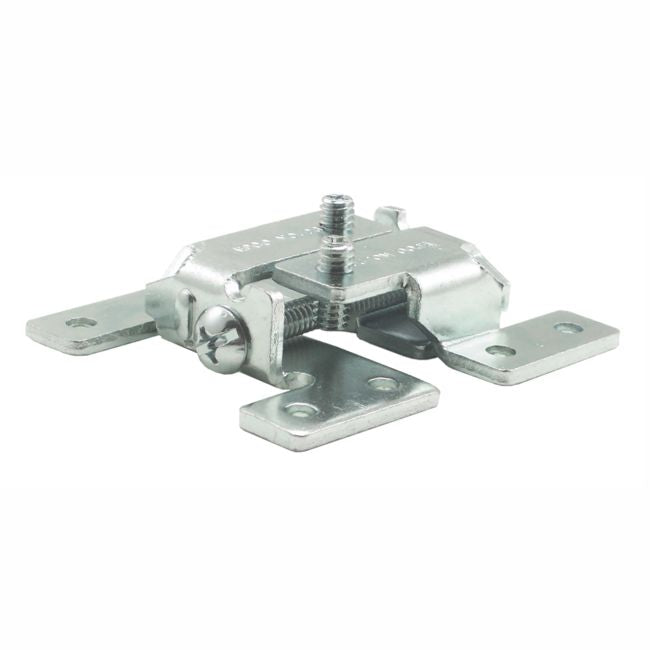

CC09-26-E Lok Level Joint Clamp
Polybagged with screws.
Joins and levels wood tops and units absolutely flush without glue, dowels or splines.
TOP CANNOT "BOW" Regardless of how tight the locking bolt is drawn, it exerts an even pressure of points "A" and "B" (see sketch) thereby keeping the top absolutely level.
MICROMETER LEVELING ADJUSTMENT Adjusting screws bear against the steel flange of the opposing member, assuring positive micrometer adjustment to insure a level top.
STURDY CONSTRUCTION Made of 10 gauge steel (over 1/8" thick)
EASY TO INSTALL Screw the lok-leveling clamps to under-side of panels at about 6" intervals leaving 1/32" space between clamps to allow for "take up" as shown in sketch. Take up on bolts to bring joint together.
Do not set up tight until panels are leveled. Use adjusting screws to level entire length of panels. Tighten bolts.
