Overview

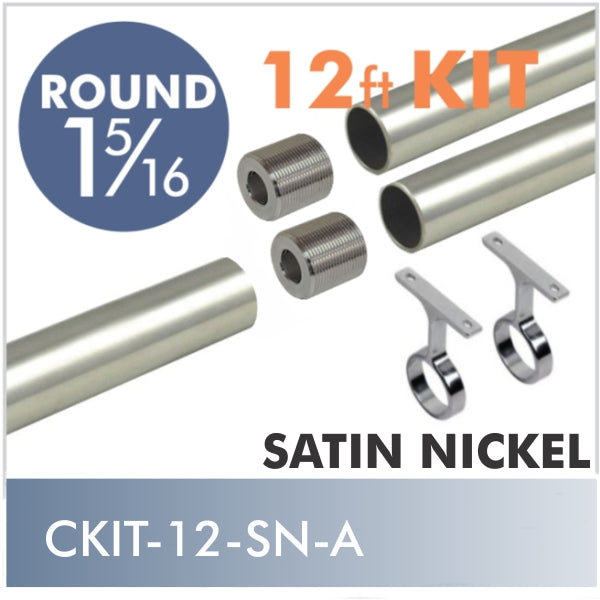

CKIT-12-SN-A Connect Kit, 12ft, Satin Nickel . Style A With Center Support.

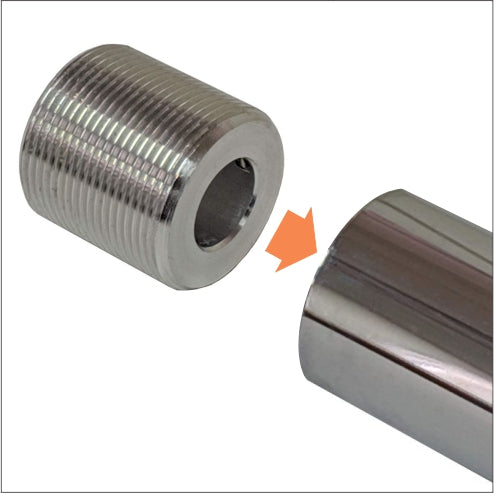

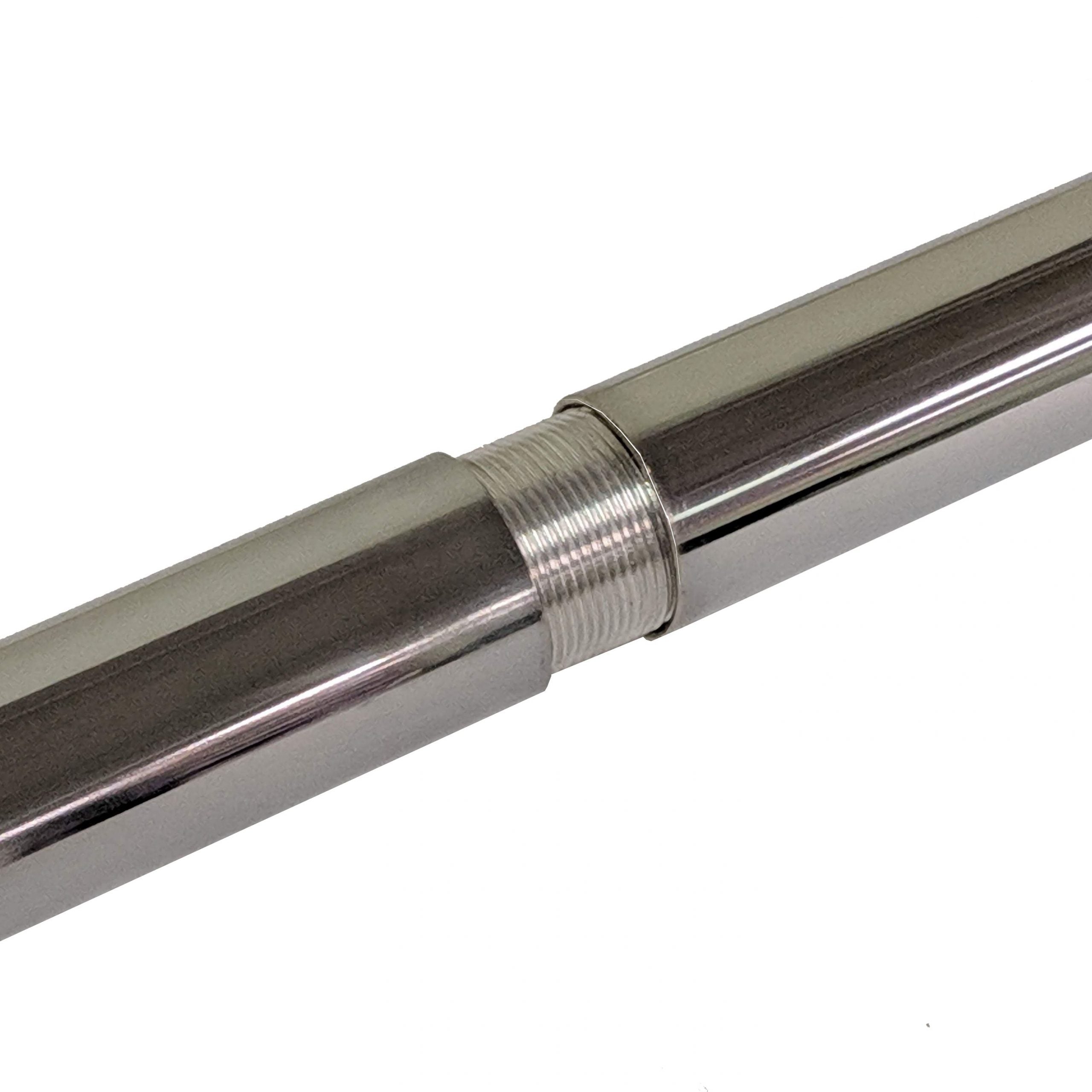

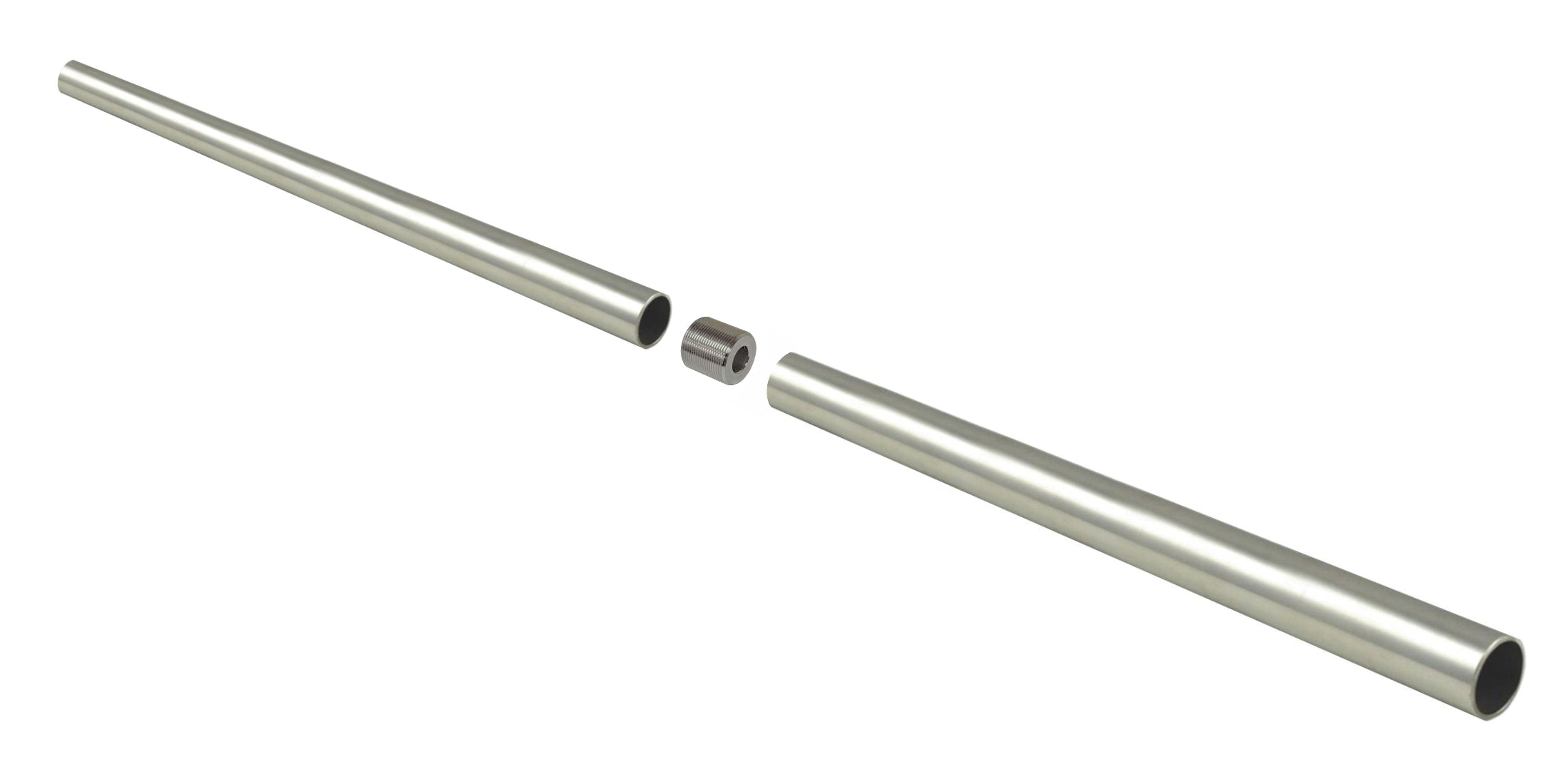

Avoid the outrageous fees by using the connect system from EPCO. Make a twelve foot span with three four foot Connect rods and two included threaded connector pieces.

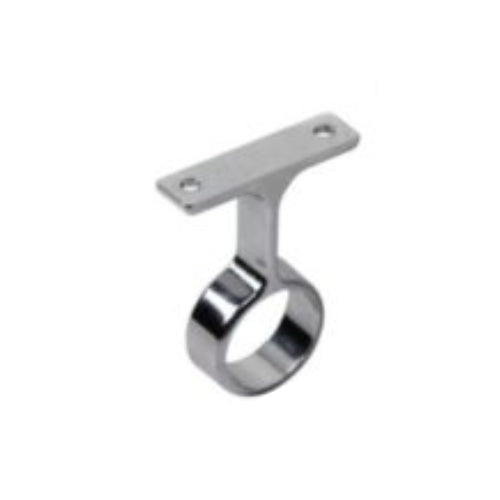

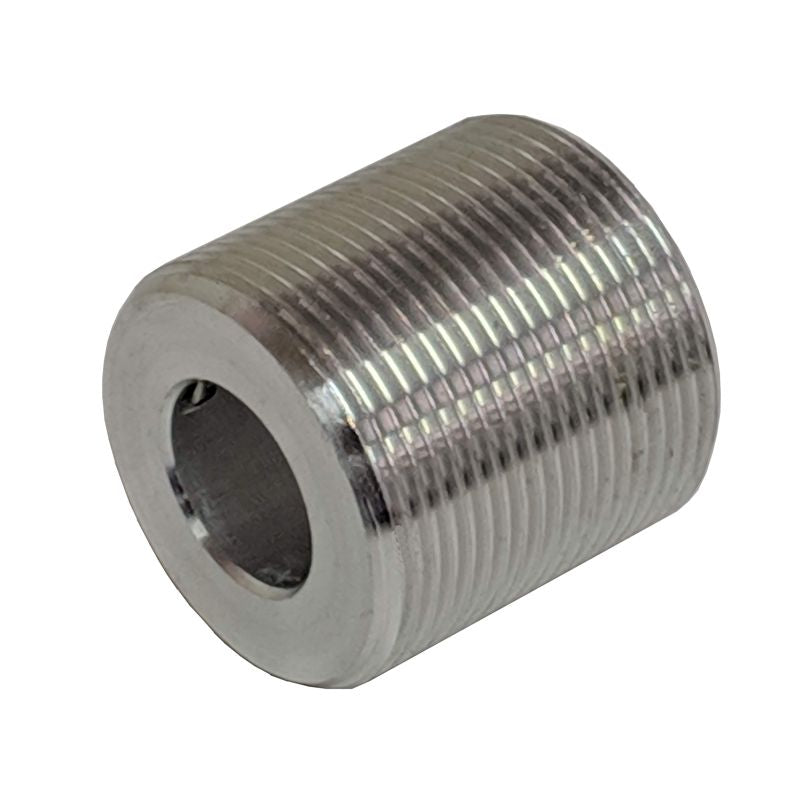

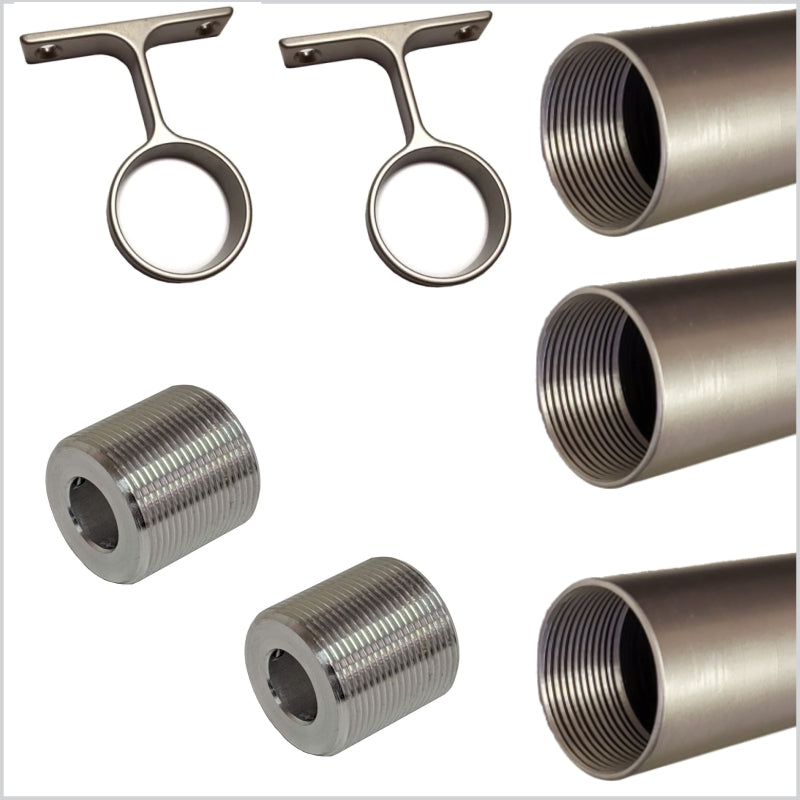

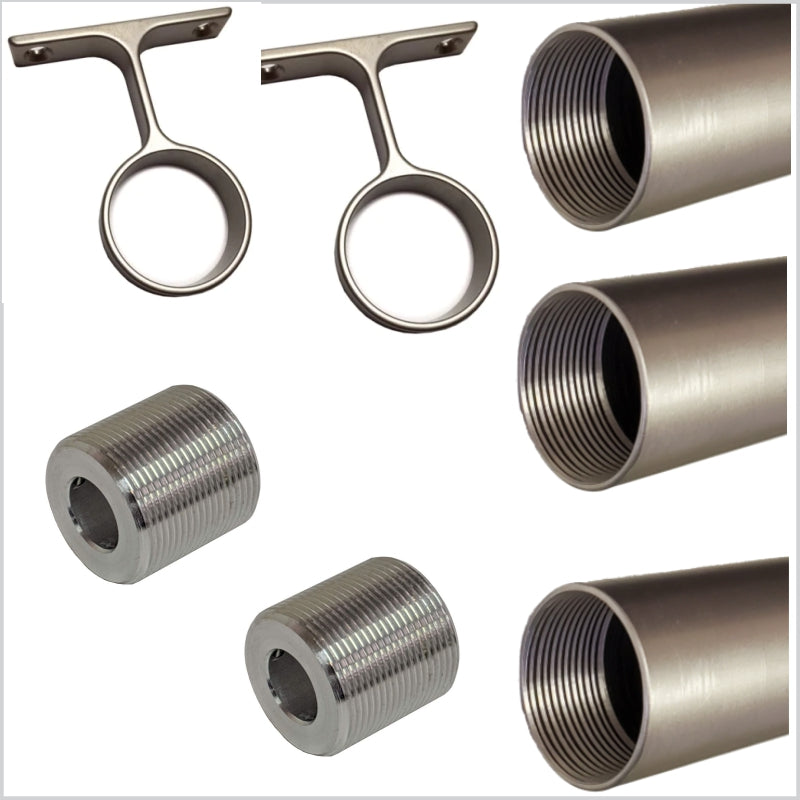

Kit includes: (3) 4ft long 1-5/16 inch diameter threaded closet rods (CKIT-200-4-SN), (2) threaded connectors (CKIT-245), and (2) center supports (TUBE253-SN) for attaching to a shelf or supporting structure above. Installation screws included.
Material: Anodized Aluminum
Assembled length is 12ft or 144 inches. You now are able to get the total span custom cut down to a range of 96 1/16 to 143 15/16 inches.
The custom cut is done by cutting off from 1 of the 4ft threaded rod. Make sure to take into account the Flange chart which shows how much to deduct from the wall to wall span to allow for the space the flanges will take up.
All 1 5/16 Diameter hardware and accessories are compatible with this 1 5/16 Diameter CONNECT Rod.
CONNECT System Video Link
View Our Help Article - CONNECT CLOSET RODS
